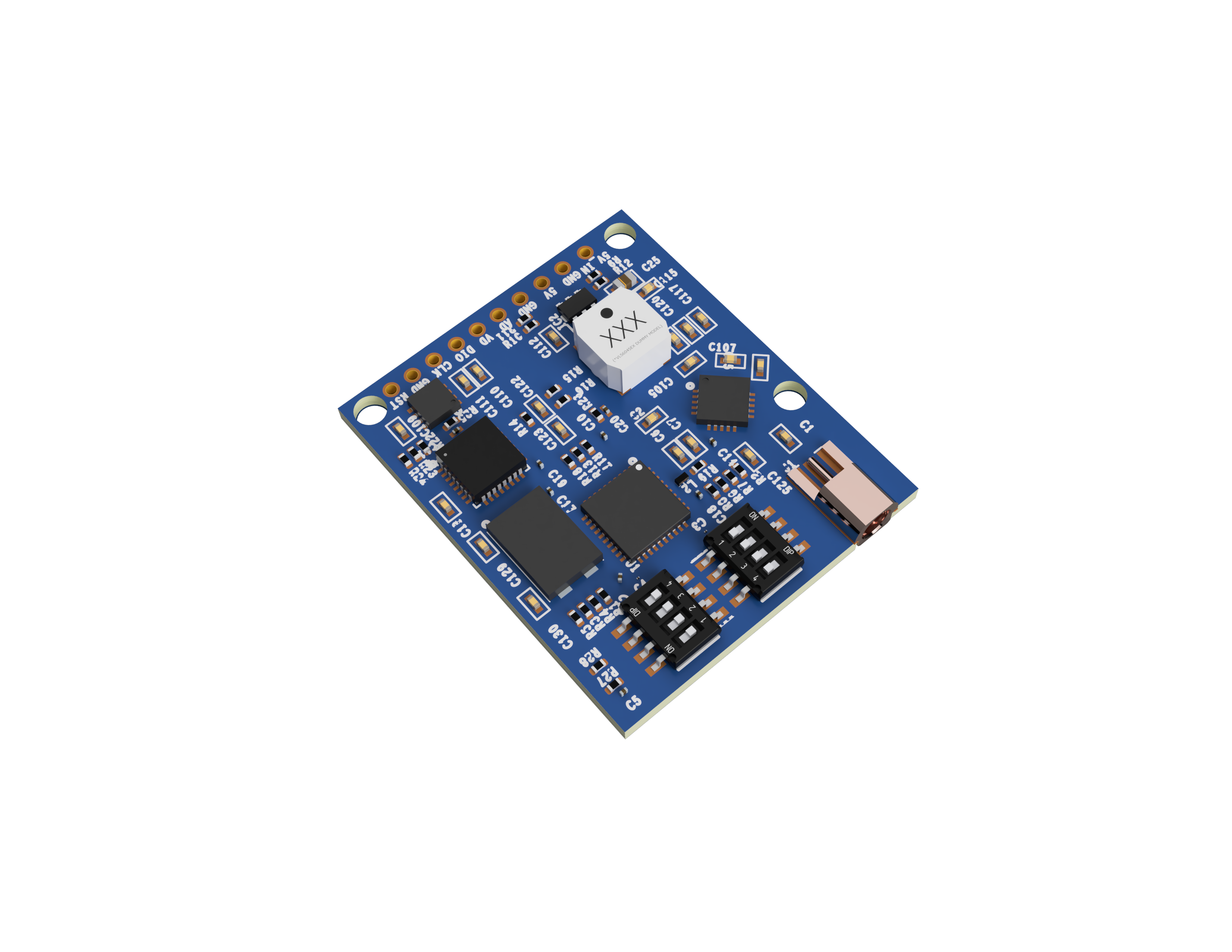

5.8 GHz Analog Video Transmitter

Custom 5.8 GHz analog video transmitter developed for UAV applications with RF signal conditioning, impedance matching and compact RF PCB design.

Project Overview

Development of a custom 5.8 GHz analog video transmitter for UAV applications. The project covered RF system architecture, analog video signal integration, RF signal paths, filtering and impedance-matching networks, power-supply design and antenna connectivity. Particular attention was paid to RF PCB layout, controlled-impedance routing, grounding, return paths, isolation between RF and power sections and minimizing unwanted coupling. The work included schematic design, RF component selection, PCB layout, matching and RF analysis, manufacturing preparation and hardware bring-up.
